The Irinos system has a built-in web server which serves as a commissioning and diagnostics tool. The web server can be accessed via a web browser such as Firefox or Opera. To do this, enter the IP address of the Irinos system into the address bar of the web browser (factory setting: 192.168.3.99).
|
The website has been successfully tested on various web browsers. However, due to differences in how standards are interpreted, we cannot guarantee that it will function perfectly on all browsers and browser versions. |
There are 3 different websites available:
Measurement

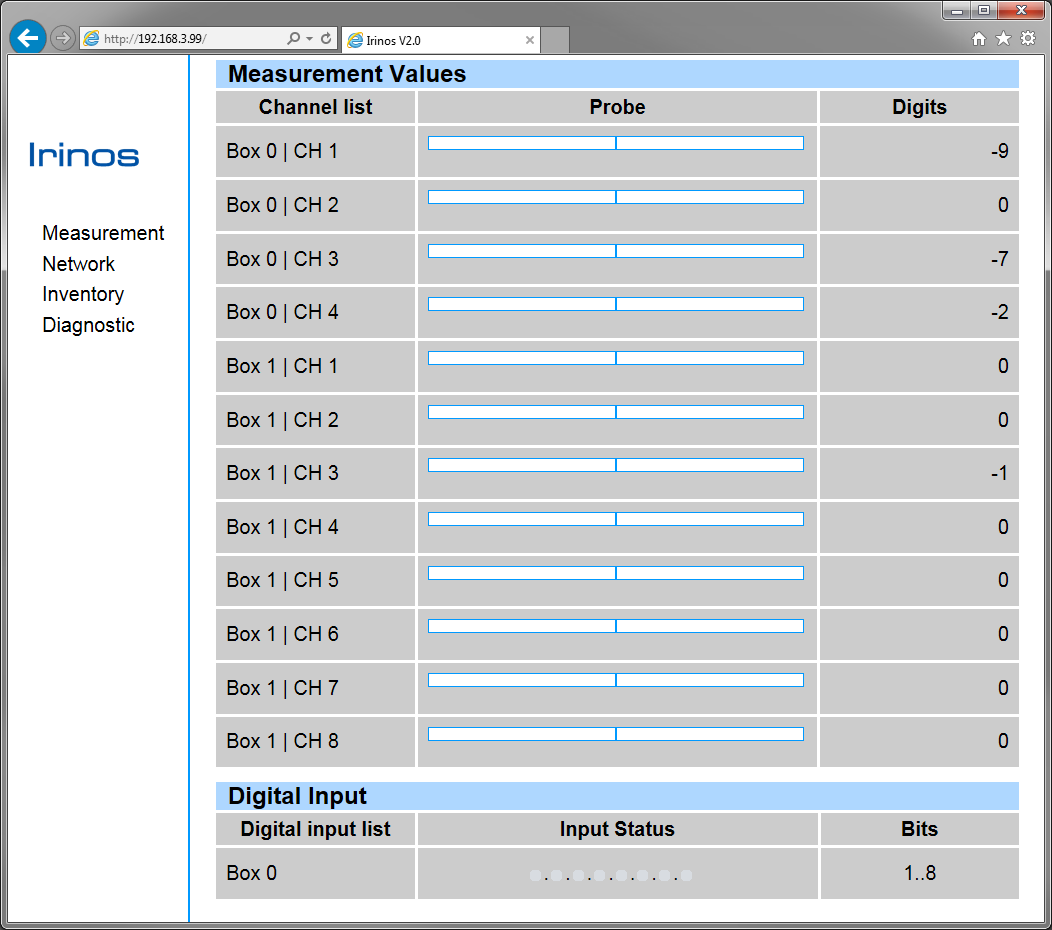

The ‘Measurement’ web page displays the current readings from the measurement inputs and the current status of the digital inputs in real time (update rate approx. 4 Hz).
This allows:
oThe probe to be set up and tested at a stage when the measurement computer software is not yet available.
oCompare the measurement values supplied by the Irinos system with those displayed by the measurement computer software.
Inventory

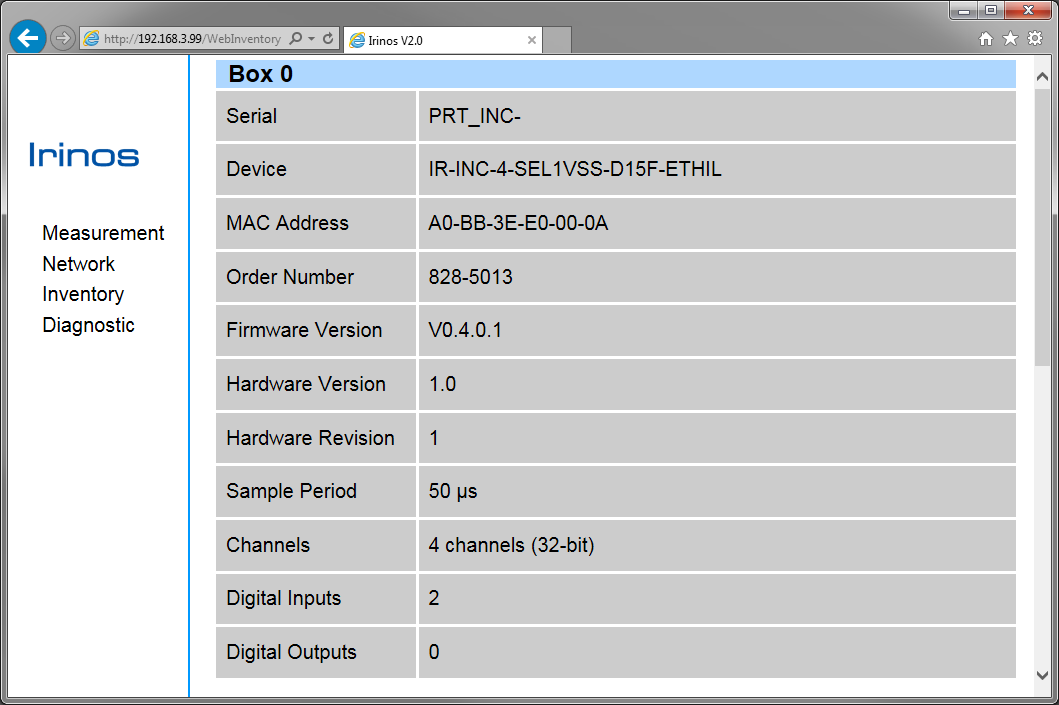

The ‘Inventory’ webpage displays an overview of all Irinos boxes currently in the Irinos system, along with key information about each box:
Information |
Example |
Description |
|---|---|---|
Serial |
I001234 |
Serial number of the Irinos box |
Device |
SC-INC-4-SEL1VSS-D15F-EPI |
Name of the Irinos box |
MAC Address |
A0-BB-3E-E0-00-0A |
Unique MAC address of the Irinos box. |
Order Number |
828-3047 |
Order number. This number always begins with 8. |
Firmware Version |
V2.0.0.11 |
Firmware version number. |
Hardware Version |
V1.1 |
Version number of the measurement hardware. |
Hardware Revision |
1 |
Hardware compatibility identifier for the firmware. |
Sample Period |
250 µs |
Internal sampling period in µs. |
Channels |
4 channels (32-bit) |
Number of measurement channels and the internal data type of the measurement channels. |
Digital Inputs |
2 |
Number of digital inputs available on the box |
Digital Outputs |
0 |
Number of digital outputs available on the box |
Diagnostic

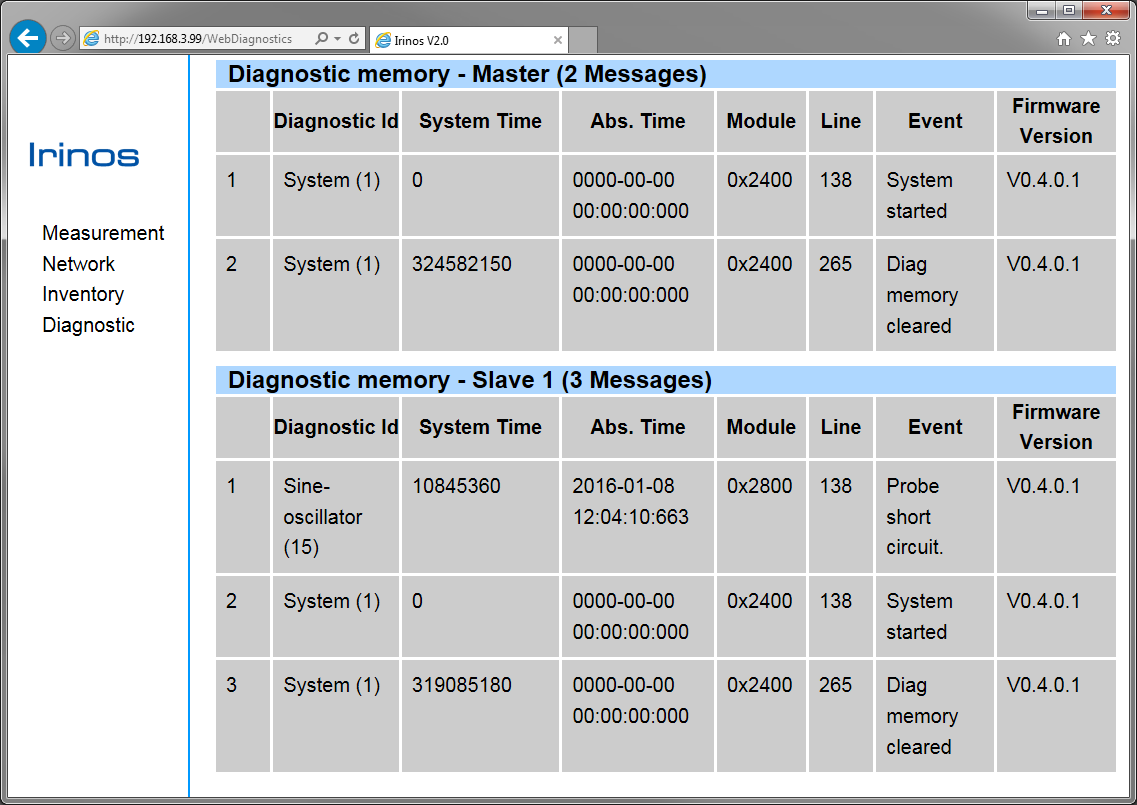

The Diagnostic webpage displays the contents of the diagnostic memory for each Irinos box:
Column |
Example |
Description |
|---|---|---|
Diagnostic-Id |
Sine-oscillator (15) |
|
System Time |
15364470 |
SCLink time in µs since the Irinos system was switched on. (This internal time is the same for all Irinos boxes in a system.) |
Abs. Time |
2016-01-08 12:04:10:663 |
The date and time when the event occurred. Year-Month-Day Hour:Minute:Second:Millisecond |
Module |
0x2800 |
Additional information for support. |
Line |
138 |
|
Event |
Probe short circuit. |
Help text for the event. |
Firmware-Version |
V0.4.0.1 |
The firmware version at the time the incident occurred. |
